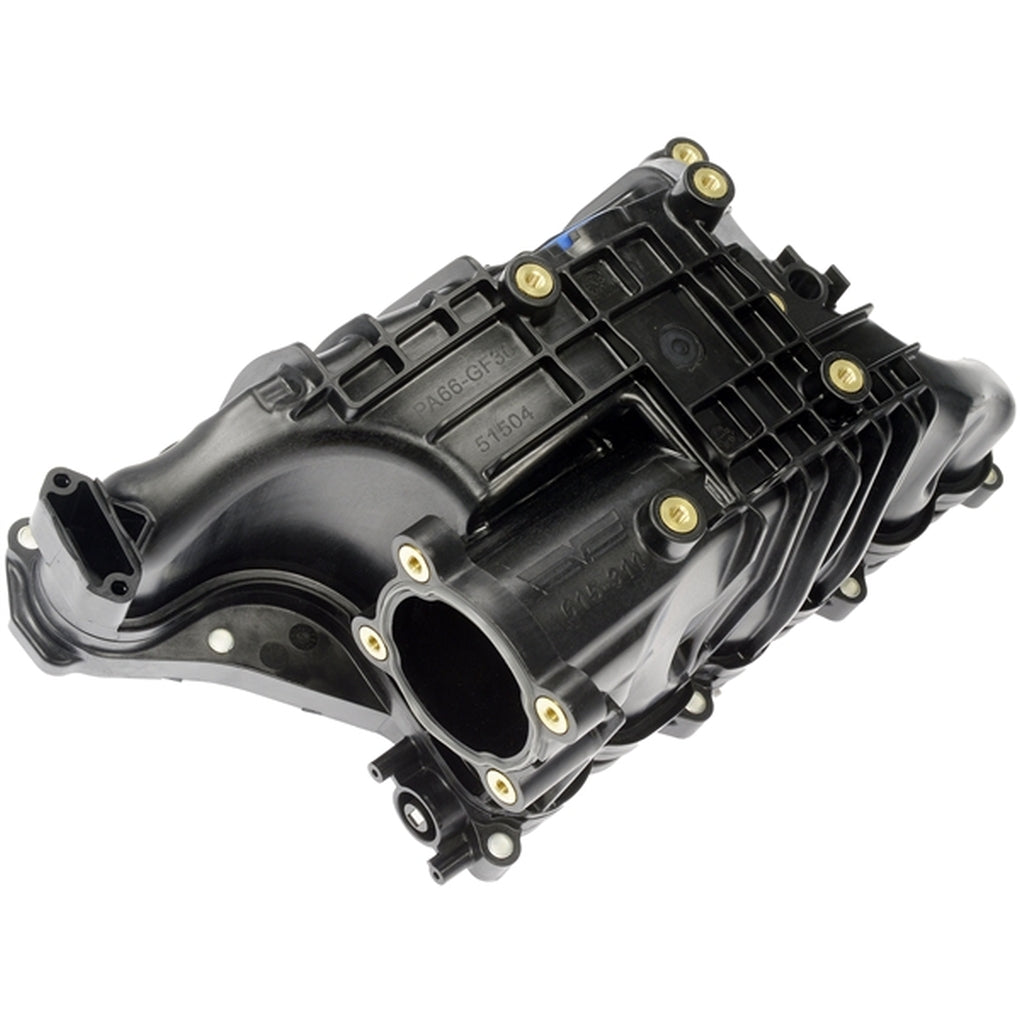

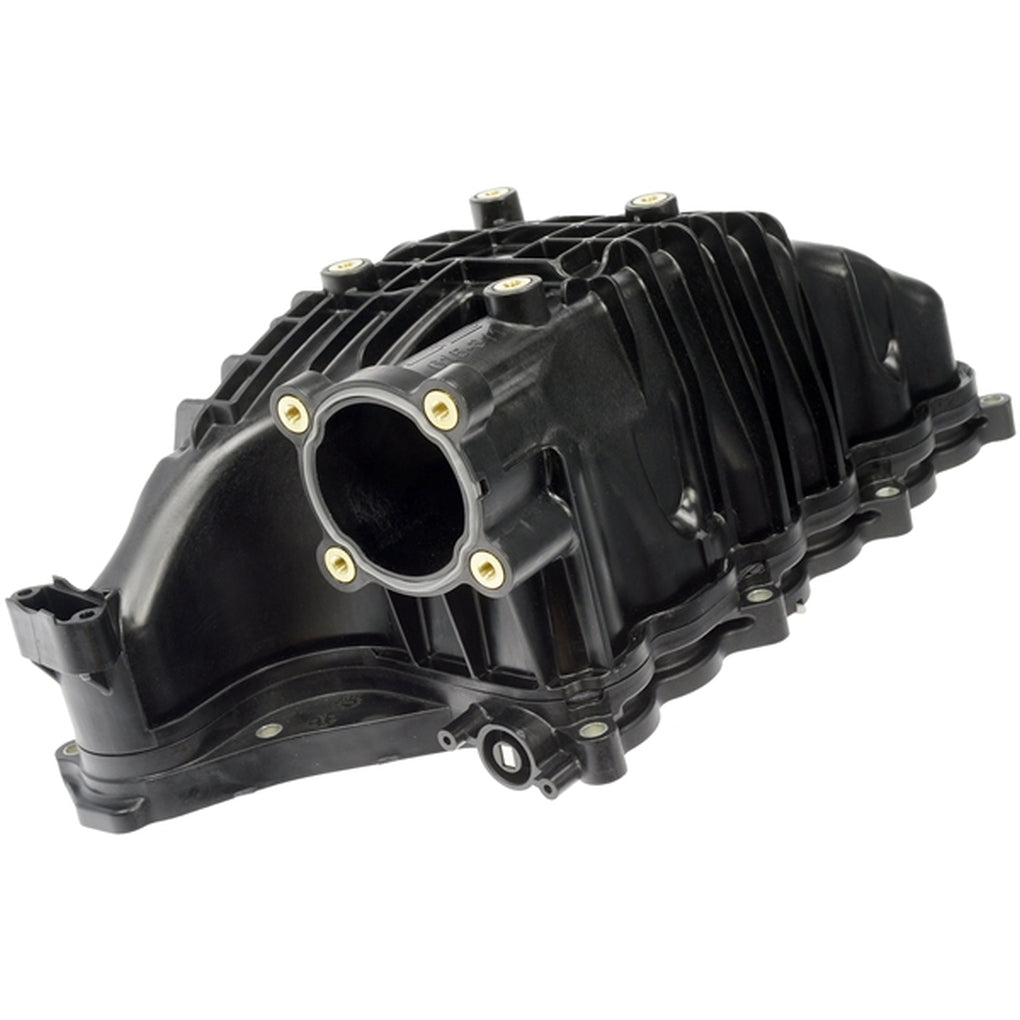

Dorman 615-311 Engine Intake Manifold
Skip to product information
On certain vehicles with Chrysler EcoDiesel V6 engines, soot buildup in the intake manifold can cause a severe loss of power, smoke, and a burning smell. A dealer recall addresses failing EGR coolers on some EcoDiesels, but even if a cooler has been repaired under warranty, it may have already caused problems downstream that aren't immediately noticeable. Soot can accumulate inside the manifold, preventing proper operation of the IMRC system, while regeneration cycles to help clean the diesel particulate filter add even more soot and heat from the EGR system. Ultimately the soot buildup acts as an insulator, causing trapped heat to warp the manifold and create a leak. Manifold runners and the MAP sensor can also be damaged or melted, creating a burning polymer residue that adds to the fouling of the IMRC system. This upgraded Dorman OE FIX intake manifold features a deeper, more protective skirt on the sensor shroud, allowing the MAP sensor to be located farther out of the path of hot EGR gases. These engineering improvements can more effectively divert EGR heat and soot through the intake for a more reliable repair than the original design. This manifold can also help reduce cost by allowing still-functional sensors to be swapped into the new manifold, vs. the OEM replacement which can only be purchased with the MAP sensor, IMRC motor, and both runner sensors.
Description
- Increases reliability - this upgraded intake manifold design features a deeper, more protective sensor shroud skirt and allows the MAP sensor to be located farther out of the path of EGR gases
- Saves time - cleaning soot buildup off a plastic manifold without damaging the manifold itself is time-consuming and difficult; replacement is a more efficient and effective repair
- Saves money - allows existing functional sensors to be swapped into the new manifold, vs. the OEM replacement which can only be purchased with the MAP sensor, IMRC motor, and both runner sensors
- Restores proper operation - engineered to help restore engine power to proper level and clear corresponding trouble codes, including P2020 and P200A
- Air Conditioning Compressor Mount: No
- Alternator Mount: No
- Center Maximum Height: 6 in
- CNC Ported: No
- Color: Black
- Deck Height: 5 in
- EGR Ready: Yes
- Front Maximum Height: 6.7 in
- Gasket Or Seal Included: Yes
- Grade Type: Regular
- Heated Choke Port: No
- High-Riser: No
- Installation Instructions Included: No
- Length: 15 in
- Manifold Height (in): 6.7 in
- Material: Plastic
- Mounting Hole Diameter: 0.125 in
- Mounting Hole Quantity: 11
- Package Contents: 1 Intake Manifold
- Package Quantity: 1
- Packaging Type: Box
- Port Outlet Dimensions: 2.5
- Port Quantity: 12
- Rear Maximum Height: 6.7 in
- Single Or Dual Plane Type: Single Plane
- Street Legal: Yes
- Width: 7 in
- 68211167AA - CHRYSLER
For more technical details and/or manufacturers product guides, email us.
Most orders leave our warehouse within 1 business day unless otherwise noted.
*Add this item to the cart to estimate shipping costs and any applicable taxes.
Reviews
Details
Product Details:
- Manufacturer:Dorman
- Part Number:615-311
- UPC:889245688521
- Sold in QTY:1
- Condition:New
