FRAM PH3980 Extra Guard Oil Filter (Spin-On, 4.938 in Height)

Skip to product information

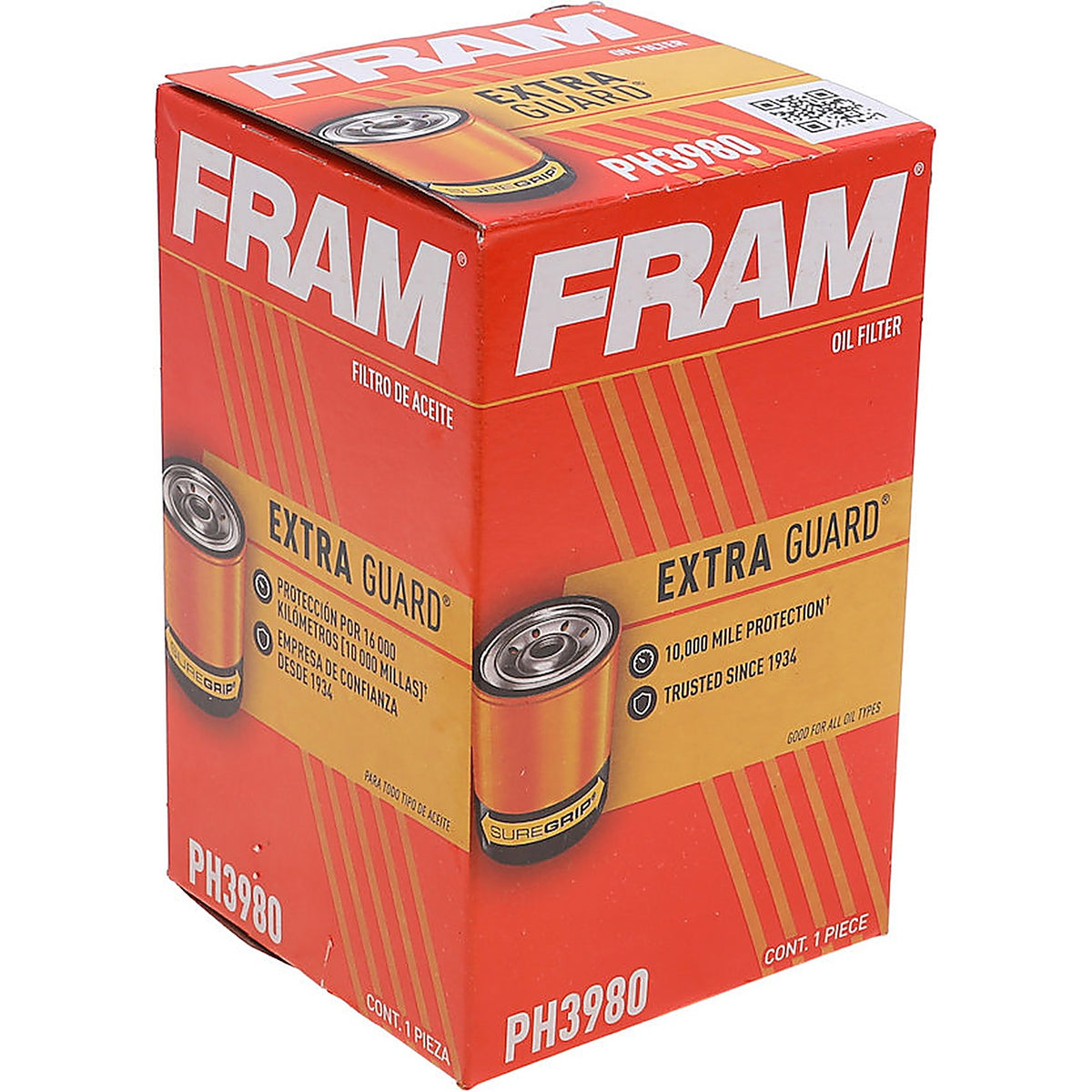

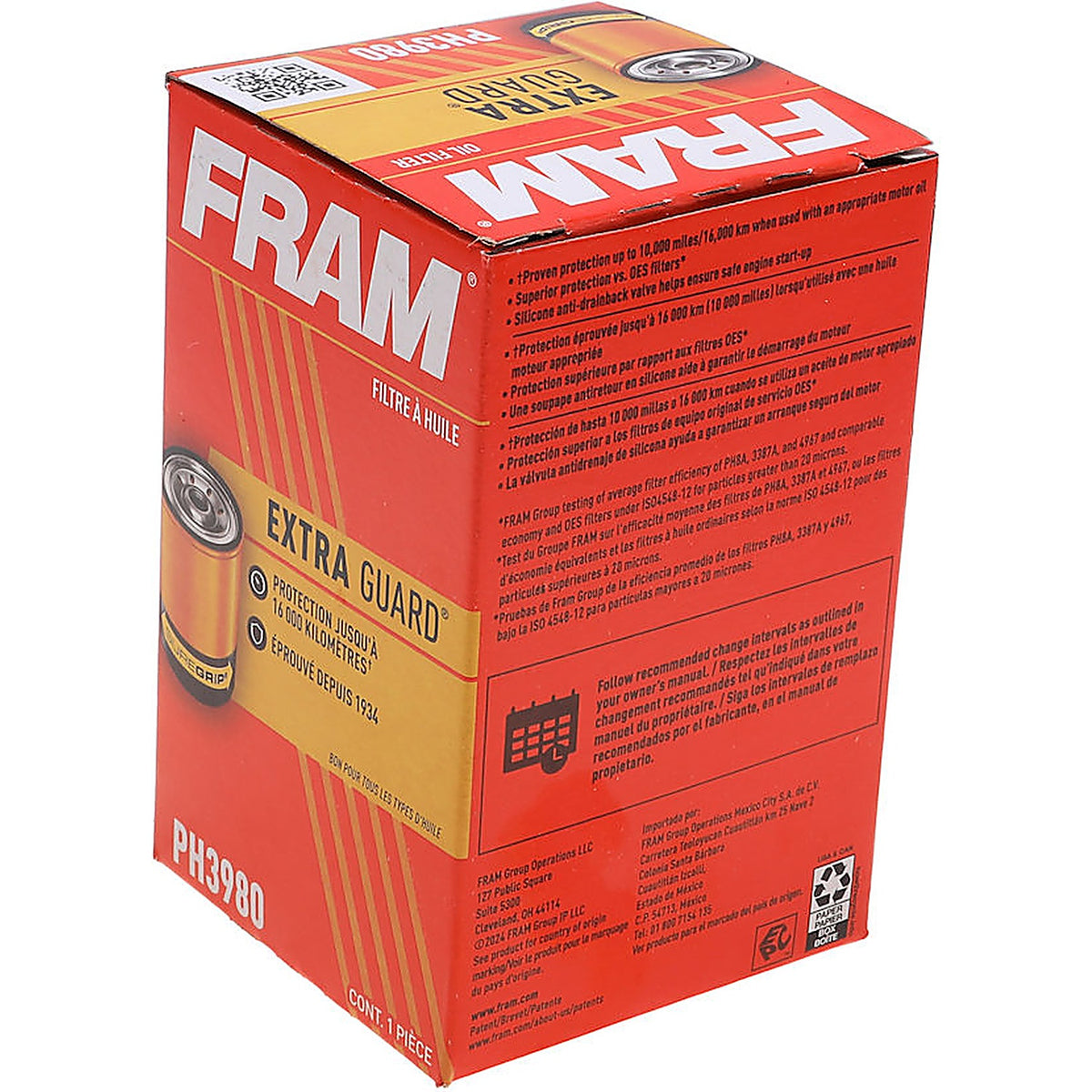

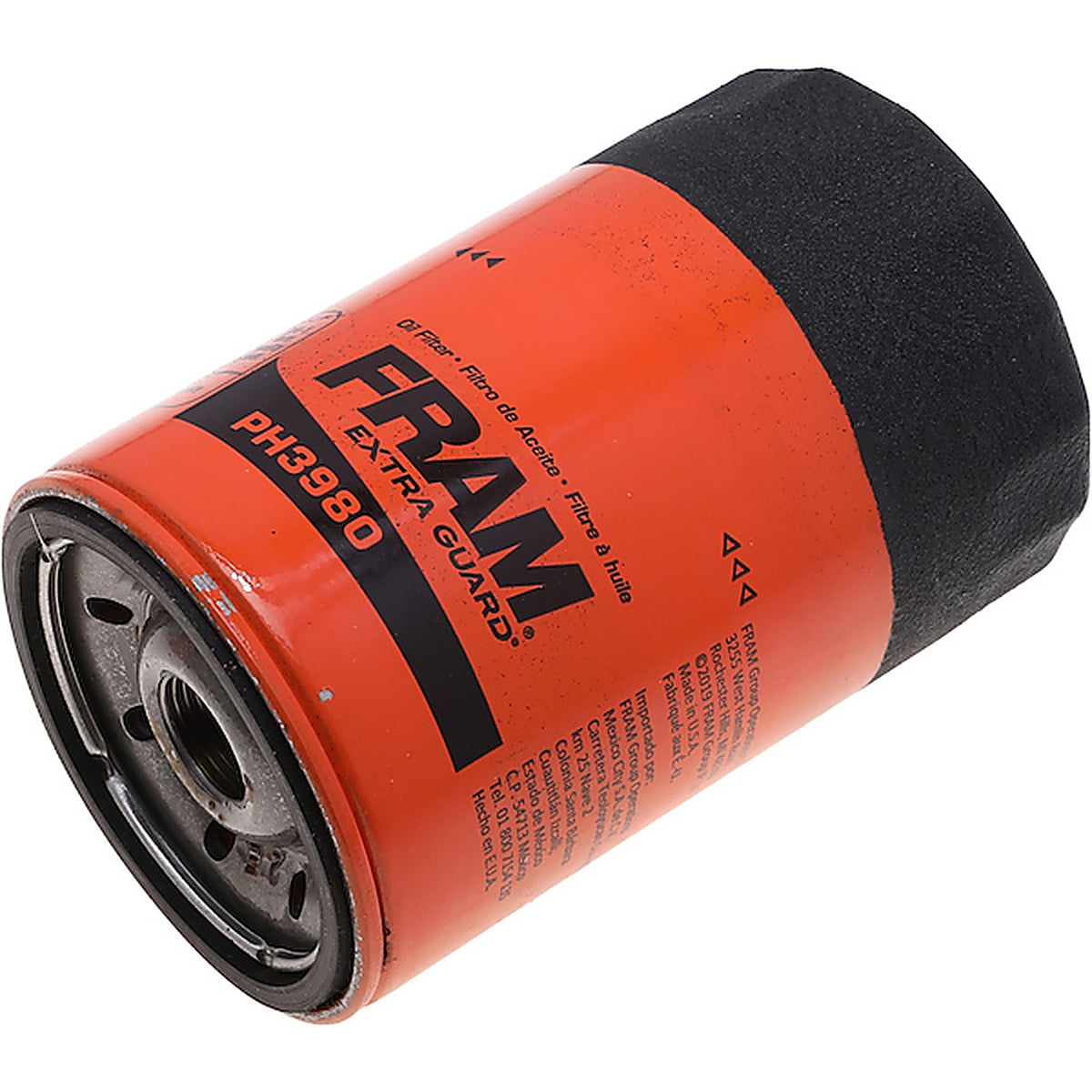

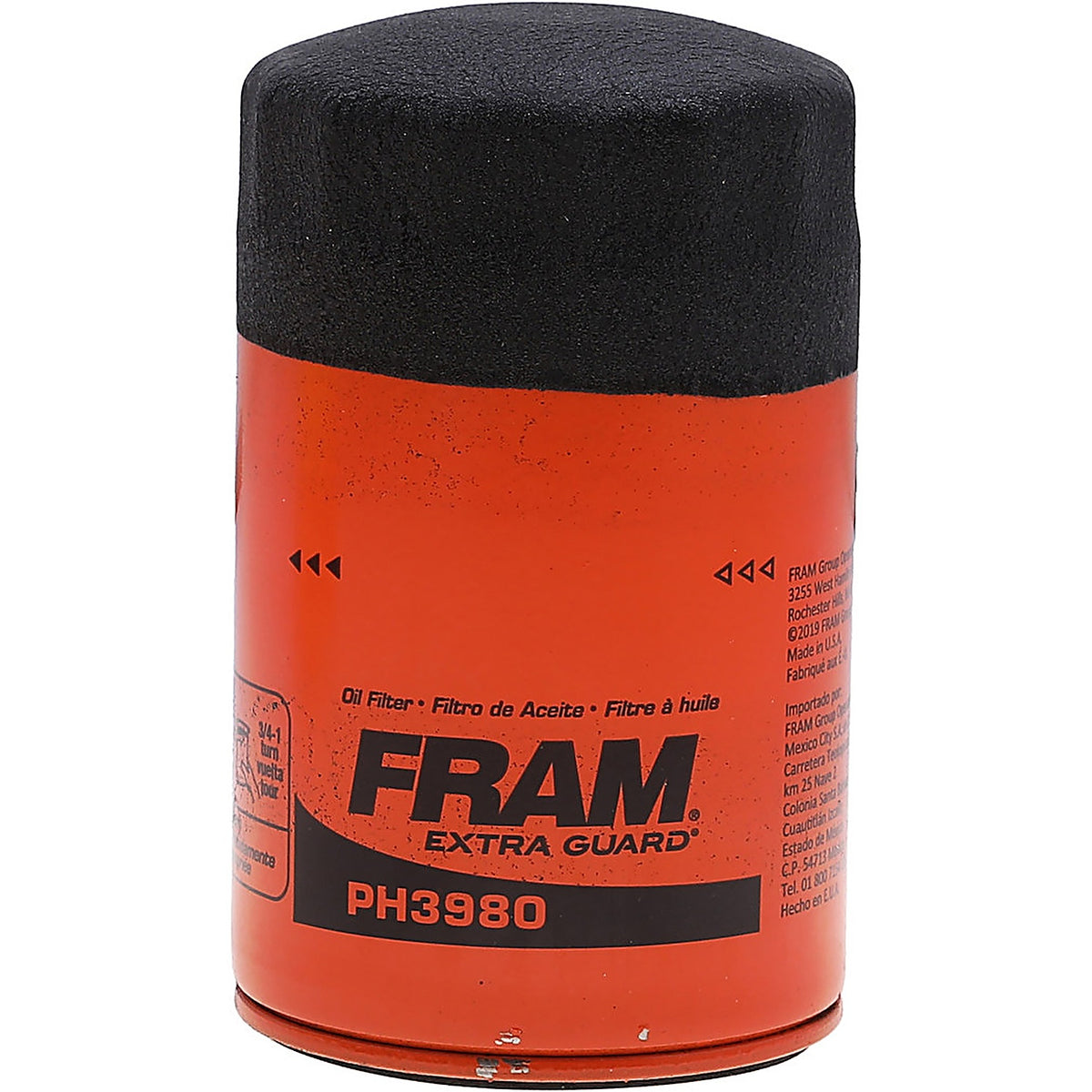

FRAM - PH3980 - Oil Filter
  • FRAM - PH3980 - Oil Filter
  • FRAM - PH3980 - Oil Filter
  • FRAM - PH3980 - Oil Filter
  • FRAM - PH3980 - Oil Filter

Description

FRAM Extra Guard oil filters deliver advanced engine protection for everyday drivers who perform routine oil changes at OE (original equipment) recommended intervals. Equipped with SureGrip technology, FRAM Extra Guard oil filters provide a non-slip surface allowing for easy install and removal. The silicone anti-drain back valve ensures safe engine startups, extending the life of the oil filter for up to 10,000 miles (16,000 kilometers).

For more technical details and/or manufacturers product guides, email us.

Most orders leave our warehouse within 1 business day unless otherwise noted.
*Add this item to the cart to estimate shipping costs and any applicable taxes.

See something wrong with this listing?

Tick what needs fixing, add the correct details, and send. It goes straight to our product team.

What needs fixing

Have a photo? Send your report, then e-mail the photo to us.

Features

  • Anti-Drain Back Valve:Yes
  • Attachment Type:Spin-On
  • Burst Pressure:310.000 (PS)
  • Bypass Relief Valve:No
  • Filter Media Material:Cellulose/Synthetic Blend
  • Filter Type:Spin-On Canister
  • Gasket Inside Diameter:2.469 (IN)
  • Gasket Outside Diameter:2.750 (IN)
  • Gasket Thickness:0.188 (IN)
  • Gasket Type:Base
  • Grade:Advanced
  • Grade Type:Regular
  • Height:4.938 (IN)
  • Housing Color:Orange
  • Inlet Type:Threaded
  • Inner Thread Diameter:M18x1.5
  • Meets Or Exceeds Original:Yes
  • New or Remanufactured:New
  • Non Slip Grip:Yes
  • Outside Diameter:2.984
  • Replaceable Filter:Yes
  • Reusable:No
  • Thread Size:Metric
  • Torque Nut:No
  • Interchange - 1800RADIATOR PREMIUM:X4011
  • Interchange - ACDELCO:PF52C PF52C
  • Interchange - ACDELCO GM ORIGINAL EQUIPMENT:PF52E PF52E PF52E
  • Interchange - ACDELCO GM ORIGINAL EQUIPMENT CANADA:PF52E
  • Interchange - ACDELCO GOLD/PROFESSIONAL:PF52F PF52F PF52 PF52 PF52F PF52F PF52 PF52
  • Interchange - ACDELCO GOLD/PROFESSIONAL CANADA:PF52F PF52
  • Interchange - ACE FILTERS:PH47
  • Interchange - ADVANCE/CARQUEST PREMIUM FILTERS:85036 85190 85036HD 85036MP
  • Interchange - ADVANCE/CARQUEST STANDARD FILTERS:R85036 R85036MP B4011 B4011MP
  • Interchange - ADVANCE/DRIVEWORKS:DW-4011
  • Interchange - ADVANCE/FRAM FORCE:FF3980
  • Interchange - ADVANCE/FRAM TITANIUM:FS3980
  • Interchange - ALLIANCE OE DELPHI - ENGINE MANAGEMENT:FX1016
  • Interchange - ALLIANT POWER PRODUCTS:LF782 LF3554 OC 721
  • Interchange - AM GENERAL OE:06004104 6004104
  • Interchange - AMSOIL:SDF23 EAO23
  • Interchange - AQUA POWER:6004
  • Interchange - ATLAS:G-77
  • Interchange - AUTO EXTRA:61851036
  • Interchange - AUTO EXTRA OIL-AIR FILTERS/US:618-51036
  • Interchange - AUTO NATION:PPG4011
  • Interchange - AUTO PRIDE:CF52AP
  • Interchange - AUTOEDGE:AL3980
  • Interchange - AUTOLITE:AL3980
  • Interchange - AUTOPAR:FE204
  • Interchange - AUTOPART INTERNATIONAL:16923 5001-202786 28077 37933 202786 28012 FRAPH3980
  • Interchange - AUTOPRIDE PRIVATE LABELS:CF47AP CF52AP
  • Interchange - AUTOPRO-1:2036
  • Interchange - AUTOWIZE:A15
  • Interchange - AUTOZONE/ACDELCO:FL-402 PF52 PF47
  • Interchange - AUTOZONE/AUTOLITE:AL3980
  • Interchange - AUTOZONE/AUTOLITE FILTERS:AL3980
  • Interchange - AUTOZONE/BOSCH:3430 72232WS
  • Interchange - AUTOZONE/DENSO:150-2008 150-2016
  • Interchange - AUTOZONE/FRAM COMMERCIAL GRADE:PH3980AZ
  • Interchange - AUTOZONE/FRAM TOUGH GUARD:TG3980
  • Interchange - AUTOZONE/K&N FILTER:PS-2001 HP-2001
  • Interchange - AUTOZONE/MOBIL:M1-201
  • Interchange - AUTOZONE/PENNZOIL:PZ-29
  • Interchange - AUTOZONE/QUAKER STATE:QS3980
  • Interchange - AUTOZONE/VALUCRAFT-CHAMP LABS:V3980
  • Interchange - AWARD:AOF-173
  • Interchange - BALDWIN:B43-S B35-S
  • Interchange - BIG A:92036
  • Interchange - BLUE MOUNTAIN:BMJ4011
  • Interchange - BOSCH:3430 3430 L3430 L3430 72232WS 72232WS D3430 D3430 72210 72210
  • Interchange - BRAVO:B173
  • Interchange - CAM2:C4011
  • Interchange - CANADIAN TIRE K&N:HP-2001 PS-2001 SO-2001
  • Interchange - CANADIAN TIRE MOTOMASTER:MPH3980
  • Interchange - CAR CARE:IOF3535 IOF3980
  • Interchange - CARQUEST:R85036 B4011 R85036MP 85036 84182MP OF1008
  • Interchange - CARQUEST FRAM FORCE:FF3980
  • Interchange - CARQUEST FRAM TITANIUM:FS3980
  • Interchange - CARQUEST PREMIUM FILTERS:85190 85036 85036MP 85036HD
  • Interchange - CARQUEST RED/WIX US:R85036 B4011 R85036MP
  • Interchange - CARQUEST STANDARD FILTERS:R85036MP R85036
  • Interchange - CARQUEST/CABIN AIR FILTERS:OF1008
  • Interchange - CARQUEST/DRIVEWORKS:DW-4011
  • Interchange - CARQUEST/WIX:85036
  • Interchange - CASITE:CF47 B35-S CF52
  • Interchange - CASTROL:CAS3980
  • Interchange - CASTROL FILTERS:CAS3980
  • Interchange - CATERPILLAR:3I-1114
  • Interchange - CENEX:CO447A
  • Interchange - CHAMPION:COS3980 41036T
  • Interchange - CHAMPION FILTERS:OF08 COS3980 OF32 41036T PH51A CL3980
  • Interchange - CHAMPION LABORATORIES INC.:ST3980 PH51A
  • Interchange - CHAMPION WIRE SETS (CANADA):PH51A
  • Interchange - CHRYSLER OE:L-319
  • Interchange - CITGO:C4011
  • Interchange - CRUISEMASTER:218
  • Interchange - DEFENSE FILTERS (FRAM):DL3980
  • Interchange - DELCO REMY AMERICA:12555891 25012760 25010908 25171377 25160560 25325403 19210286
  • Interchange - DELPHI:FX1016 FX1016
  • Interchange - DENSO:150-2008 150-2008 150-2016 150-2016
  • Interchange - DEUTSCH:D487
  • Interchange - DONALDSON:C-3980 P550051
  • Interchange - DYNALIFE:CN-3535
  • Interchange - ECOGARD:X4011
  • Interchange - ECONO-LUBE:L24011
  • Interchange - EVERGARD:E4011
  • Interchange - FACET ENGINE MANAGEMENT:51
  • Interchange - FACTORY MOTOR PARTS:R1036
  • Interchange - FEDERATED FILTERS:PH51A PG4011F LF233F PG4011BF LF393F P4011
  • Interchange - FILTERS INC.:OF3535 OF3980
  • Interchange - FIRESTONE:TF52
  • Interchange - FRAM EXTENDED GUARD FILTERS:XG3980
  • Interchange - FRAM FORCE:FF3980
  • Interchange - FRAM PRO FILTERS:PH3980PRO
  • Interchange - FRAM TITANIUM:FS3980
  • Interchange - FRAM TOUGH GUARD FILTERS:TG3980
  • Interchange - FRAM ULTRA:XG3980
  • Interchange - FVP:R1036 R1036 R1036
  • Interchange - FVP PROFESSIONAL FILTERS:R1036
  • Interchange - GK INDUSTRIES:OF34631 OF24011 OF10111 OF2006
  • Interchange - GRAND PRIX:PH51A
  • Interchange - GROUP 7:V4011
  • Interchange - HASTINGS FILTERS:LF233 LF234 LF393 LF234F LF393F
  • Interchange - HAVOLINE:T-27
  • Interchange - HUTCHENS:SF-173
  • Interchange - IMC:091 09005 091 09005 101
  • Interchange - INSTALLER EDGE:AL3980 ML3980
  • Interchange - INTERAMERICAN MOTOR CORPORATION:3430 091 09005
  • Interchange - ISUZU OE:8-25171-377-0
  • Interchange - JOHN DEERE:TY15135
  • Interchange - K&N FILTER:PS-2001 HP-2001
  • Interchange - K&N LORDCO:SO-2001 HP-2001
  • Interchange - LETOURNEAU:MO51
  • Interchange - LUBER-FINER:PH51A
  • Interchange - MAGNETI MARELLI OFFERED BY MOPAR:1AMFL00028 1AMFL00020
  • Interchange - MAHLE ORIGINAL:OC 81 OC721 OC 721
  • Interchange - MAHLE ORIGINAL ADVANTAGE:OC721
  • Interchange - MANN-FILTER:ML 1007 W7 MULTI 18 W7 MULTI 18 ML 1007
  • Interchange - MARATHON:MO51
  • Interchange - MASTER IMPORTED PARTS:PH-51 PH-51A
  • Interchange - MASTER PRO IGNITION:2-OF1008 OF1008
  • Interchange - MERCURY OE:35-802884Q 41815 35-802884T 35-883702Q
  • Interchange - MEXICO ACDELCO GM ORIGINAL EQUIPMENT:PF52E
  • Interchange - MICRO:F-173
  • Interchange - MICROGARD:MGL3980 MGL51036
  • Interchange - MIGHTY:M3980
  • Interchange - MILEGUARD:MO3980
  • Interchange - MINIT-LUBE:PH51
  • Interchange - MOBIL:MO4011 M1-201
  • Interchange - MOBIL 1:M1-201A M1-201
  • Interchange - MOTOR TREND:ML3980
  • Interchange - MOTORCRAFT:FL-402
  • Interchange - NAPA:1190
  • Interchange - NAPA CANADA/GOLD FILTERS - NGF:1036
  • Interchange - NAPA CANADA/NAPA PROFORMER FILTERS - PPZ:21036 21036MP
  • Interchange - NAPA CANADA/SILVER FILTERS -SFL:31036
  • Interchange - NAPA FILTERS - BWF:1190
  • Interchange - NAPA FILTERS - PGI:1036
  • Interchange - NAPA/ GOLD FILTERS:1036
  • Interchange - NAPA/BALKAMP-BK:HP2001
  • Interchange - NAPA/DONALDSON COMPANY - DCQ:P550051
  • Interchange - NAPA/NAPA PROFORMER FILTERS - PGF:21036 21036MP
  • Interchange - NAPA/PLATINUM FILTERS-PFL:41036
  • Interchange - NAPA/SILVER FILTERS-SFL:31036
  • Interchange - NETWORK MOTORCRAFT:FL-402
  • Interchange - O'REILLY/ MICROGARD SELECT:MSL51036
  • Interchange - OMNICRAFT:QFL15
  • Interchange - OMNIPARTS:22045031
  • Interchange - ORIGINAL ENGINE MANAGEMENT:OF1008
  • Interchange - PARTS MASTER/ CHAMPION LABORATORIES:61036
  • Interchange - PARTS MASTER/HIGHLINE WARREN:61036
  • Interchange - PARTS MASTER/WIX:61036 61036BP
  • Interchange - PARTS PLUS FILTERS BY PREMIUM GUARD:PH51ABULK PH51A PG4011 PPG4011
  • Interchange - PENNZOIL:PZ-29 HPZ-29 PZ29BP
  • Interchange - PENTIUS AUTOMOTIVE PARTS:PLXL3980 PLG3980 PLB3980 PLXL3980 PLG3980 PLB3980
  • Interchange - PERFORMAX:PO-29
  • Interchange - PGI EXTENDED LIFE:PG4011
  • Interchange - PHILLIPS 66:PO4011
  • Interchange - PITSTOP:PSL25
  • Interchange - POWER FLO:SL24011
  • Interchange - POWERTRAIN COMPONENTS (PTC):P4011
  • Interchange - PREMIUM GUARD:PG4011
  • Interchange - PRIME GUARD:POF4011 POF111 POF4011 POF111
  • Interchange - PRO TEC FILTERS:PTL51036MP 120 PXL51036
  • Interchange - PRO TEC FILTERS BY WIX:PTL51036MP PXL51036MP PXL51036
  • Interchange - PROGAUGE:PGO-4011
  • Interchange - PROMOTIVE:PH4011
  • Interchange - PRONTO:PO4011 PO3980 PO-4011
  • Interchange - PRONTO/ID USA:PO4011 S3980
  • Interchange - PROTEC-NEW:PXL51036 PXL51036MP
  • Interchange - PUREZONE:8-51036
  • Interchange - PUREZONE CABIN, FUEL, TRANS FILTERS:8-51036
  • Interchange - PUROLATOR:PL24011 TL24011BP TL24011 PBL24011 L24011
  • Interchange - PUROLATOR BOSS:PBL24011
  • Interchange - QUAKER STATE:QS3980BLK QS3980
  • Interchange - QUALITY MANUFACTURING INC:QF51
  • Interchange - RJR PRODUCTS:OP-173
  • Interchange - ROCKHILL:61036
  • Interchange - ROYAL PURPLE:20-51A
  • Interchange - SAFETY-KLEEN:110
  • Interchange - SECURITY:SO173 SO-173
  • Interchange - SELECT 500:L1036
  • Interchange - SERVICE 1:OF173
  • Interchange - SERVICE CHAMP:OF111 OF4011 OF173
  • Interchange - SERVICE PRO:M4011
  • Interchange - SHELL:SH27
  • Interchange - SIEG:OS3535
  • Interchange - SIERRA:18-7879
  • Interchange - SILVERLINE:21036
  • Interchange - SPIRE SUPPLY:X4011
  • Interchange - STP:S3980XL S3980
  • Interchange - STP PERFORMANCE PRODUCTS:S3980
  • Interchange - SUPER TECH FILTERS:ST3980
  • Interchange - SURE FILTER:SFO4011
  • Interchange - TECNOCAR:R MIX 18
  • Interchange - TRANSIT AUTO:LOP-LP3980
  • Interchange - TRUST-1:PH51A
  • Interchange - UNOCAL 76:PF51
  • Interchange - VALU-TEST:42051 V2036
  • Interchange - VALVOLINE:VO55
  • Interchange - VALVOLINE FILTERS:VO-55 VO-55BP
  • Interchange - VALVOLINE NEXTGEN MAXLIFE:VO55BP VO55
  • Interchange - VIPER:3980
  • Interchange - VOLVO OE:841750-3 841750
  • Interchange - WARNER:WPH47 WPH51A
  • Interchange - WD EXPRESS:091 09005 101
  • Interchange - WEB:W3980
  • Interchange - WESTERN AUTO:74-5918-3
  • Interchange - WIX:51036 51190
  • Interchange - WIX CANADA:51036
  • Interchange - WIX XP:51036XP
  • Interchange - WORKHORSE:W8800466
  • Interchange - XSV:OP-173
  • Applications:Workhorse (6), 2000 - 2005

Reviews

Details

Product Details:

  • Manufacturer:FRAM
  • Part Number:PH3980
  • UPC:009100381477
  • Sold in QTY:1
  • Condition:New
  • Country of Origin:Usa

Prop65

WARNING: May cause Cancer and/or Reproductive Harm - www.P65Warnings.ca.gov About California Proposition 65
FRAM PH3980 Extra Guard Oil Filter (Spin-On, 4.938 in Height)
0 Review(s) Write a Review
$3.75 $3.87
Flash sale

Sold out! All Gone!

Put me on the waiting list

The item you are trying to purchase is currently out of stock. Please enter your name and email below. We will contact you as soon as this product is available.

Express Checkout Options: Venmo, Apple Pay, Google Pay and PayPal

What customers are saying

  • ★★★★★Thank you so much,— Jim, CA
  • ★★★★★Received my merchandise today. All is good.— Dave, IL
  • ★★★★★I was happy with the quality in the brass strips, quick delivery, and your service— Marvin, FL
  • ★★★★★Service and price and ease of ordering was great!— Annette, NJ
  • ★★★★★I just wanted to say how impressed I am with your service!— Jason, IA
  • ★★★★★The items purchased are exactly what I ordered. No surprises and that is always good.— Chuck, WA
  • ★★★★★I am really thankful that my order was handled so fast.— Matt, MN
  • ★★★★★You are the best this is exactly what I need!— Robert, NJ
  • ★★★★★Thank you for double checking the fit!— Jeffrey, MA
  • ★★★★★I appreciate your rapid service!— Richard, AR
  • ★★★★★They were very helpful, both online and over the telephone.— Karen, IL
  • ★★★★★Thank you for double checking the fit. The Part Fits Perfectly! Thank you for all of your help!!!— John, CA
  • ★★★★★I was shocked by how quickly I received my order.— Jason, CA
  • ★★★★★I appreciate your quick follow-up and the great pricing.— Colin, WA
  • ★★★★★Great Service! Completely hassle free and very fast :) Would shop again.— Mick, CA
  • ★★★★★I wanted to let you know I received the u joint and it is exactly what I was looking for. Thanks again!— Mark, TX
  • ★★★★★Thanks again! You guys are great and now bookmarked!— Fran, PA
  • ★★★★★Wow! Thanks for the quick shipping!!!— Rob, NY
  • ★★★★★You folks are all right.— Jim, CA
  • ★★★★★You really took care of me on this!— Brett, FL

More FromFRAM Related Items

Questions shoppers ask

See all FAQs
How soon does it ship?
Most orders leave our warehouse within 1 business day unless otherwise noted. Add the item to your cart to see shipping cost and any tax.
Can I return it?
Most items can be returned within 30 days of delivery if they are unused and in their original, undamaged packaging. Email us for a Return Authorization (RA) number first, and make sure the item reaches our warehouse within those 30 days. A 15% restocking fee applies and you pay return shipping, unless the item is defective or the mistake was ours. Special orders and items marked No Return can't be returned. Full return policy.
Do you offer quantity discounts?
Many items do. When this one has them, the price breaks are listed with the price above, and the price updates as you change the quantity. Need a larger quantity than we show? Ask us.
Your prices are so good, is it new?
Yes. This item is new and in its original FRAM packaging unless the description above says otherwise.

Related Items
