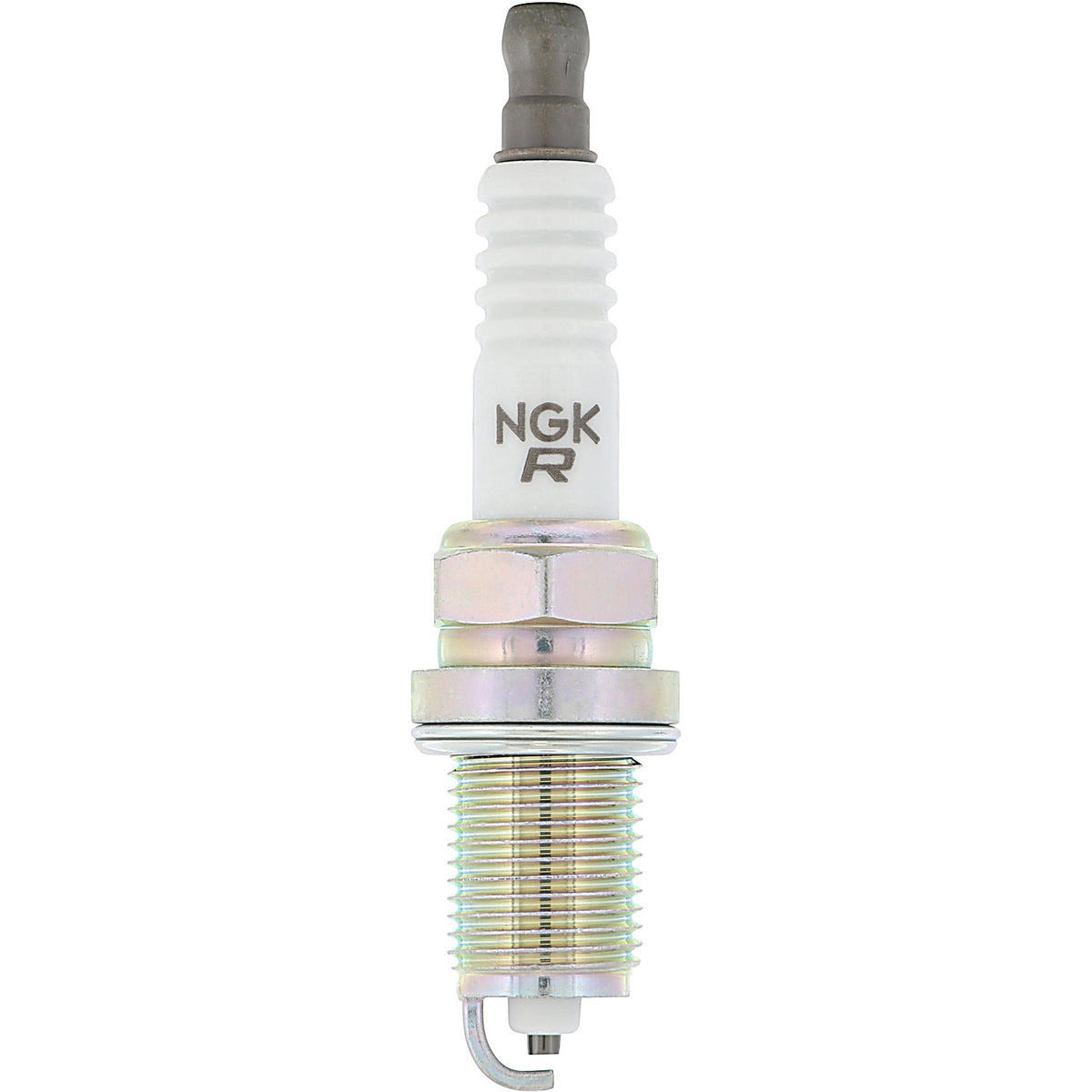

NGK 3686 V-Power Spark Plug
Skip to product information
Description
NGK V-Power spark plugs deliver reliable performance and enhanced ignitability compared to standard nickel plugs.
- Engineered specifically for OE applications.

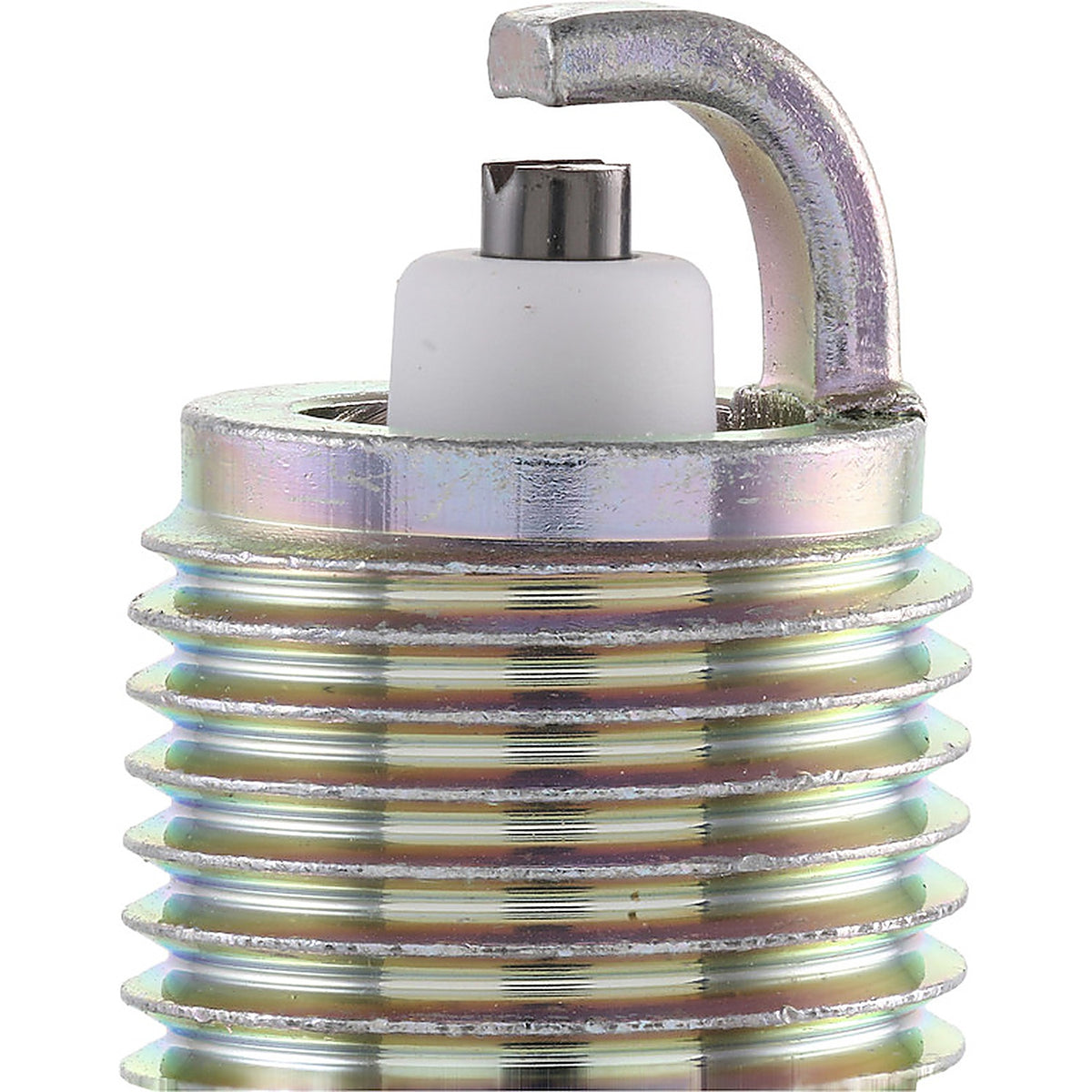

- Features a special V-cut nickel alloy center electrode.
- Includes a concave ground electrode to increase ignitability, providing quicker starts and smoother idle.
- Utilizes high-grade alumina silicate ceramic for a stronger insulator and optimal dielectric performance.
- Trivalent metal plating ensures superior anti-corrosion and anti-seizing properties.
For more technical details and/or manufacturers product guides, email us.
Most orders leave our warehouse within 1 business day unless otherwise noted.
*Add this item to the cart to estimate shipping costs and any applicable taxes.
Features
- Part Number:FR45
- Stock Number:3686
- Metallurgy:Copper
- Service Number:FR45
- Short Style Spark Plug:No
- Resistance:5000.0 (82)
- Ground Electrode Tip Design:Standard
- Ground Configuration:J-Gap
- Thread Type Standard:Metric
- Ground Electrode Core Material:Nickel
- Washer (s) Included:Yes
- Grade Type:Standard Replacement
- Electrical Terminal Type:Non-Removable Nut
- Center Electrode Core Material:Copper
- Center Electrode Tip Material:Nickel
- Pre-Gap Size 1:.060 (IN)
- Pre-Gap Size 2:1.5 (MM)
- Ground Electrode Quantity:1
- Hex Size:5/8" (16mm)
- Insulator Height 1:1.99 (IN)
- Insulator Height 2:50.5 (MM)
- Manufacturer Heat Range:4
- Seat Type:Flat
- Reach 1:0.750 (IN)
- Reach 2:19.0 (MM)
- Insulator Material:Ceramic
- Resistor Type:Yes
- Skirt Length:0.0 (MM)
- Thread Size:M14 - 1.25
- Ground Electrode Tip Material:Nickel
- Skirt:No
- Center Electrode Insulator Tip Projection 1:0.16 (IN)
- Center Electrode Insulator Tip Projection 2:4.0 (MM)
- Center Electrode Design:Standard
- Washer Type:Crush
- Center Electrode Projection:Mid Projection
- Interchange - ACDELCO:41-815 41-815
- Interchange - ACDELCO GOLD/PROFESSIONAL:41-905 41-630 1 41-602 R44TS 41-817 41-629 41-602 2 1 41-630 1 R44TS 2 41-817 41-800 41-602 41-905 R45TS 2 41-630 41-629 41-905 R45TS 41-800 41-800 41-629 R45TS 41-905 41-817 R44TS 1 41-629 41-602 41-817 41-800 2 R44TS R45TS 41-630
- Interchange - ACDELCO GOLD/PROFESSIONAL CANADA:R45TS 41-800 41-905 41-629 1 R44TS 41-817 41-630 41-602 2
- Interchange - ALLIANCE OE NGK SPARK PLUGS:3686
- Interchange - AUTOLITE:3924
- Interchange - AUTOPART INTERNATIONAL:NGK3686
- Interchange - AUTOZONE/ACDELCO:R44TS 41-817 41-630 41-602 41-815 R45TS 41-800 41-905
- Interchange - AUTOZONE/AUTOLITE:3924 5184
- Interchange - AUTOZONE/NGK:3686
- Interchange - BOSCH:FR8DCY FR8DCY
- Interchange - CARQUEST:1348
- Interchange - CHAMPION:89
- Interchange - CHAMPION SPARK PLUGS:89C2 89
- Interchange - E3 SPARK PLUGS:E3.20 E3.48
- Interchange - IMC:739 33023 739 33023 136
- Interchange - INTERAMERICAN MOTOR CORPORATION:739 33023 FR 45
- Interchange - MIGHTY:GRP32
- Interchange - MOTOR MASTER:TRN79-6
- Interchange - MOTORCRAFT:SP-406
- Interchange - NAPA CANADA/AC DELCO SPARK PLUGS - ACP:41800
- Interchange - NAPA CANADA/AUTOLITE SPARK PLUGS- AUT:AP3924 3924 APP3924 3924DP XP3924
- Interchange - NAPA CANADA/BOSCH - RBU:8100
- Interchange - NAPA CANADA/NGK SPARK PLUGS - NGB:3072 3922 3686
- Interchange - NAPA/AC SPARK PLUGS-AC:41800
- Interchange - NAPA/AUTOLITE - AUT:XP3924 3924 3924DP APP3924
- Interchange - NAPA/BOSCH-BSH:8100
- Interchange - NAPA/E3 SPARK PLUGS-EEE:E348
- Interchange - NAPA/NGK SPARK PLGS-OXYGEN SENS-NGK:3072 3922
- Interchange - NGK CANADA BASE NUMBERS:3922 FR45 3686
- Interchange - NGK CANADA STOCK NUMBERS:3686
- Interchange - NGK CANADA/NTK SENSORS:3686
- Interchange - NGK USA BASE NUMBERS:FR45 FR4
- Interchange - NGK USA STOCK NUMBERS:BR6HS
- Interchange - OMNIPARTS:IK16TT PK16TT
- Interchange - WD EXPRESS:739 33023 136
- Applications 1:Buick (14), 1985 - 1990
- Applications 2:Cadillac (5), 1986 - 1990
- Applications 3:Chevrolet (5), 1986 - 1990
- Applications 4:Chrysler (9), 1995 - 2000
- Applications 5:Dodge (13), 1995 - 2000
- Applications 6:Oldsmobile (15), 1985 - 1990
- Applications 7:Plymouth (12), 1996 - 2000
- Applications 8:Pontiac (4), 1986 - 1989
Reviews
Details
Product Details:
- Manufacturer:NGK
- Part Number:3686
- UPC:087295136867
- Sold in QTY:1
- Condition:New
- Country of Origin:Japan
