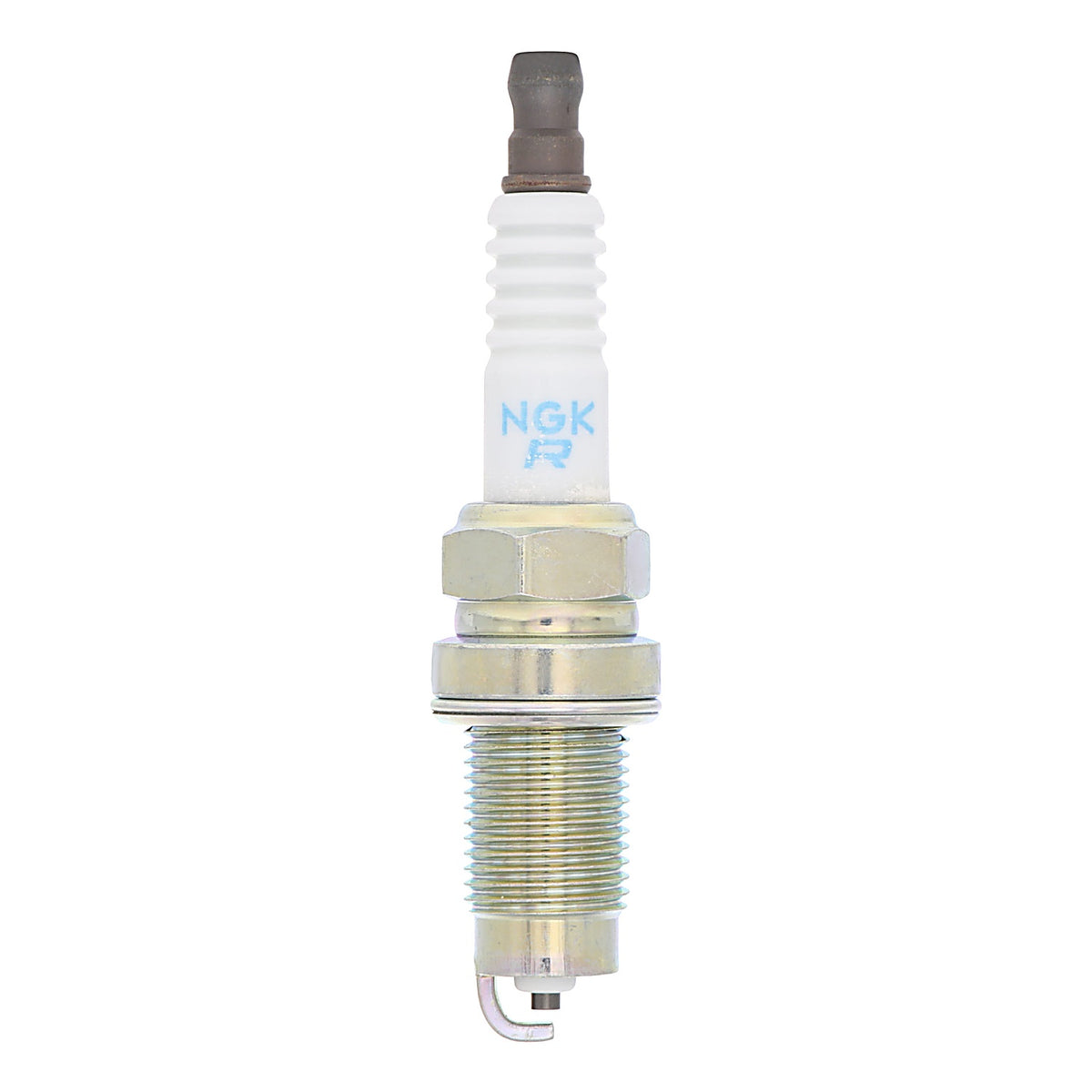

NGK 4936 Standard Spark Plug - 5/8 in Hex, M14 x 1.25 Thread
Skip to product information
Description
This Standard spark plug is a proven Original Equipment (OE) cornerstone, offering reliable performance for decades.
- Engineered specifically for OE applications
- Provides OE quality nickel alloy for reliable performance and design
- Features high-grade alumina silicate ceramic for a stronger insulator and optimal dielectric performance
- Triple gasket sealing prevents combustion gas leakage
- Solid 98% pure copper core offers superior heat dissipation, conductivity, and ultra-wide heat ranges
- Trivalent metal plating ensures superior anti-corrosion and anti-seizing properties
For more technical details and/or manufacturers product guides, email us.
Most orders leave our warehouse within 1 business day unless otherwise noted.
*Add this item to the cart to estimate shipping costs and any applicable taxes.
Features
- Stock Number:4936
- Part Number:ZFR5D-11
- Short Style Spark Plug:No
- Service Number:ZFR5D-11
- Metallurgy:Copper
- Resistance:5000.0 (82)
- Ground Electrode Tip Design:Standard
- Ground Configuration:J-Gap
- Thread Type Standard:Metric
- Ground Electrode Core Material:Nickel
- Washer (s) Included:Yes
- Grade Type:Standard Replacement
- Electrical Terminal Type:Non-Removable Nut
- Center Electrode Core Material:Copper
- Center Electrode Tip Material:Nickel
- Pre-Gap Size 1:.044 (IN)
- Pre-Gap Size 2:1.1 (MM)
- Ground Electrode Quantity:1
- Hex Size:5/8" (16mm)
- Insulator Height 1:1.99 (IN)
- Insulator Height 2:50.5 (MM)
- Manufacturer Heat Range:5
- Seat Type:Flat
- Reach 1:0.750 (IN)
- Reach 2:19.0 (MM)
- Insulator Material:Ceramic
- Resistor Type:Yes
- Skirt Length 1:0.138 (IN)
- Skirt Length 2:3.5 (MM)
- Thread Size:M14 - 1.25
- Ground Electrode Tip Material:Nickel
- Skirt:Yes
- Center Electrode Insulator Tip Projection 1:0.26 (IN)
- Center Electrode Insulator Tip Projection 2:6.5 (MM)
- Center Electrode Design:Standard
- Washer Type:Crush
- Center Electrode Projection:Extra-Long Projection
- Interchange - ACDELCO GOLD/PROFESSIONAL:41-806 41-806 41-806 41-806
- Interchange - ACDELCO GOLD/PROFESSIONAL CANADA:41-806
- Interchange - ALLIANCE OE NGK SPARK PLUGS:4936
- Interchange - ALTROM:N4936
- Interchange - AUTOLITE:5224
- Interchange - AUTOPART INTERNATIONAL:NGK4936
- Interchange - AUTOZONE/ACDELCO:41-806
- Interchange - AUTOZONE/AUTOLITE:5224
- Interchange - AUTOZONE/NGK:4936
- Interchange - BECK/ARNLEY:1765207 1765207
- Interchange - E3 SPARK PLUGS:E3.48 E3.20
- Interchange - INTERAMERICAN MOTOR CORPORATION:ZFR 5 D 11
- Interchange - MIGHTY:GRP33
- Interchange - MOTORCRAFT:SP-445
- Interchange - NAPA CANADA/AC DELCO SPARK PLUGS - ACP:41806
- Interchange - NAPA CANADA/AUTOLITE SPARK PLUGS- AUT:5224 APP5224 XP5224 AP5224
- Interchange - NAPA CANADA/BOSCH - RBU:6721
- Interchange - NAPA CANADA/CHAMPION SPARK PLUG - CHA:33182 3318 9202 318 7318
- Interchange - NAPA CANADA/NGK SPARK PLUGS - NGB:7096 4936
- Interchange - NAPA/AC SPARK PLUGS-AC:41806
- Interchange - NAPA/AUTOLITE - AUT:XP5224 APP5224 5224 AP5224
- Interchange - NAPA/BOSCH-BSH:6721
- Interchange - NAPA/CHAMPION SPK PLUGS-CHA:318 3318 33182 9202 7318
- Interchange - NAPA/DENSO-DEN:3135
- Interchange - NAPA/E3 SPARK PLUGS-EEE:E348
- Interchange - NAPA/NGK SPARK PLGS-OXYGEN SENS-NGK:4936 4435
- Interchange - NGK CANADA BASE NUMBERS:4936 ZFR5D-11
- Interchange - NGK CANADA STOCK NUMBERS:4936
- Interchange - NGK CANADA/NTK SENSORS:4936
- Interchange - NGK USA BASE NUMBERS:ZFR5D-11
- Interchange - NISSAN:22401-40F15
- Interchange - NISSAN OE:22401-40F15
- Applications:Nissan (1), 1989 - 1989
